Finite Element Analysis of MEMS Pressure Sensor

Finite element analysis on a MEMS pressure sensor used in Automotive closed loop control

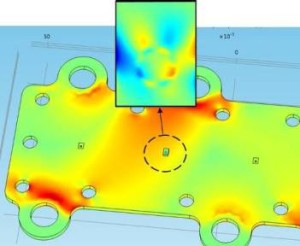

This MEMS pressure sensor array is used to monitor hydraulic pressure in a closed loop automatic transmission. The finite element analysis (FEA) is performed to reduce mounting sensitivity (parasitic stress / strain) in the MEMS pressure sensor’s diaphragm.
